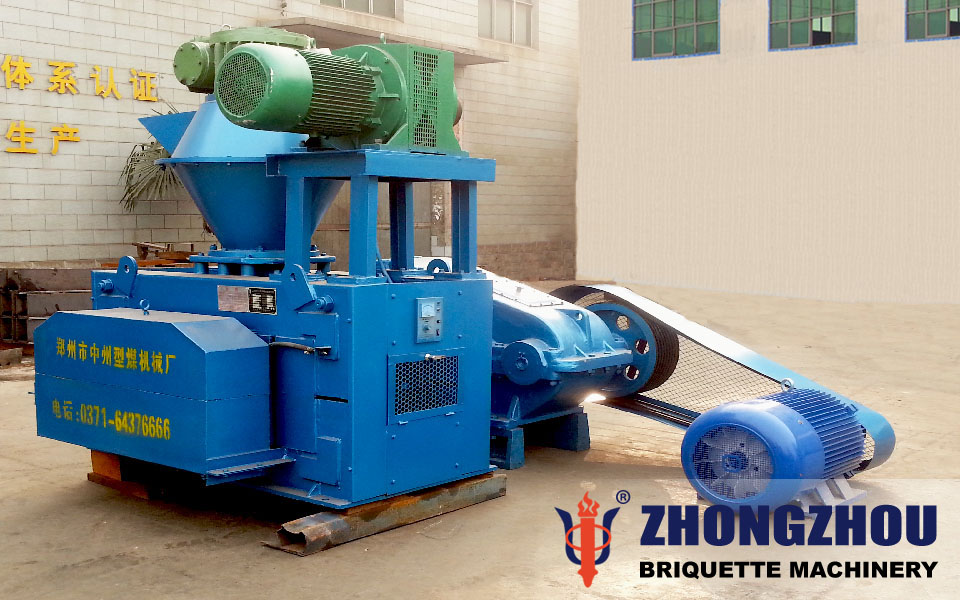

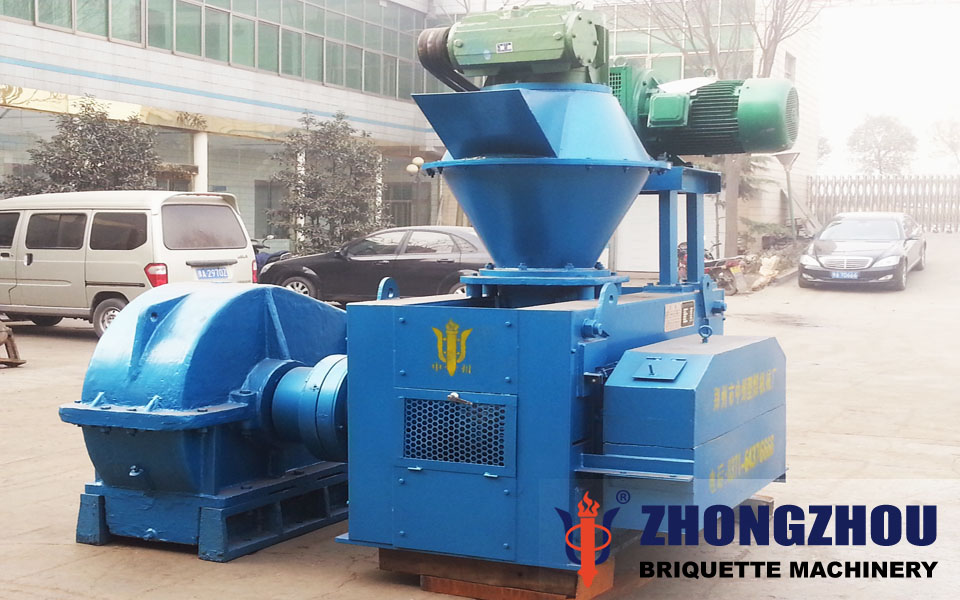

Calcined Lime Briquette Machine
1-30 million tons of production
mining materials, metallurgical materials,coal industry,metallurgy industry, chemical and fertilizer industry, refractory industry
Since 2002 the Institute of metallurgical industry solved this problem through scientific research, namely using high pressure briquette machine,to make the kiln powder into briquettes, used for smelting, at present, some steel mills abroad and China's B
We're here to help: Easy ways to get the answers you need.
calcined lime briquette machine summary
Previously, The lime powder are mostly abandoned in metallurgy industry in China, or for other purposes, causing a great waste of resources. With the resources increasingly tense energy, using the lime powder will be more and more attended for metallurgy industry. Since 2002 the Institute of metallurgical industry solved this problem through scientific research, namely using high pressure briquette machine,to make the kiln powder into briquettes, used for smelting, at present, some steel mills abroad and China's Baosteel mill, Anshan Iron and steel mill has been used this method to utilize lime powder. Zhongzhou high pressure briquette machine is a special briquette equipment which used for lime briquettes production.
calcined lime briquette machine working process
The lime came from kiln is screened, the materials less than 3mm directly go into high pressure briquette machine, briquettes size is about 35mm*25mm*15mm (length * width * thickness), the shape and size also can also be designed in accordance with customer's requirements, get 1.9-2.2g/cm3 bulk density briquettes,falling strength is almost same with limestone. The qualified briquettes will go into the finished product bin for smelting after selection.
The characteristic of calcined lime briquette machine
Good effective pressure, high briquette rate, high strength; long service life for rollers; the double shaft reducer structure, improve the precision of rollers, the involute gear reducer, improve performance and life; the prepress device use speed motor, all wear resistant parts are alloy, improve the performance and service life; the hydraulic station is placed independently with overpressure protection function.
Purchase guidance for callcined lime briquette machine:
Please inform the production requirements, the size of briquettes into its shape, the parameter table is based on the capacity of our company's standard briquettes size, calculated as the density of lime into the briquettes.
Zhengzhou Zhongzhou Briquette Machinery Plant has formed a research and development, design, manufacture, test and service of professional equipment manufacturers in China briquette machine industry, and equipped with the perfect test room of briquette machine , our factory can determine the process process and process parameters, and complete the model selection and design and manufacture based on users' material through experiment, that is the most complete and specific briquette machine manufacturing base. Welcome to visit our factory!
|Diameter of roll||530mm||650mm||750mm||850mm|
|Width of roll||196mm||196mm||196mm||250mm|
|Max linear pressure ratio||5 t/cm||6 t/cm||6t/cm||8 t/cm|
|Main power||55kw||75kw||90kw||90kw 132kw|
|Pre-pressure power(speed adjustment)||18.5kw||18.8kw 22kw||22kw||22kw|
|Oil pump powder||1.5kw||1.5x2kw||1.5x2kw||1.5x2kw|
|Main rotation speed||9r/min||9r/min||9r/min||9r/min|
|Size of briquettes||38x25x13mm||38x25x13mm||38x25x13mm||38x25x13mm|
|Output||3t/h||5t/h 8t/n||8t/h 12t/h||9t/h 15t/h|

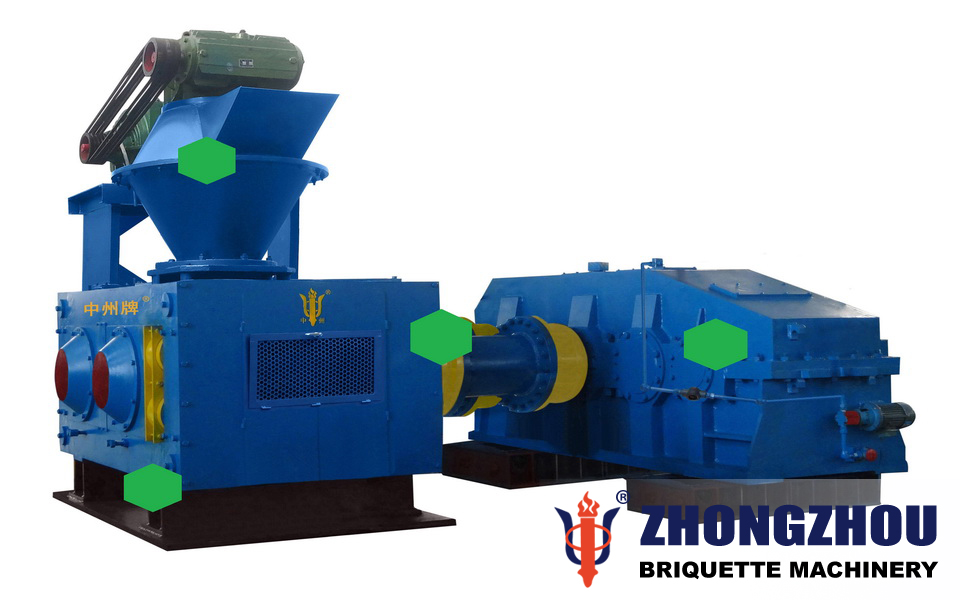

Four rollers double pressure
after the first pressurization, the materials between main and auxiliary rollers enter the place between two main rollers for a second pressurization, where the pressure will be twice of the type of two rollers.(the auxiliary roller pre-press the hemisphere on the amin roller to exhaust air, the hemisphere will be pressed again into briquettes fomation through two main rollers).
GB standard hydraulic components
manufaturing by Dezhou oil pump company, using embolism type pump equipped with storage device which can be operation of protection briquette machine when the hydraulic moment fluctuation, the oil cylinder adopts compound type and be made of standard material 27SiMn, extremely good finish, wear resistance, having protective effect on seals.
Roller taper assembly techology(patent)
Roller and wheel hub of briquette machine is processed into tamper structure, which shall be compacted firmly by bolts for stability and reliance, easy to replace roller,save time and efforts for users.
9Cr2 forging rollers
the roller materials adpot 9Cr2 forging steel, high precision and abrasion resisitant, the rigidity reach to 55-60HR through prempering.
National standard bearing
Using the rolling mill bearing series, each model is the double row cylindrical ball bearing, well-known brands, lagre load bearing, stable performance, guarantee period of 5 years.
Split plummer block
Unique split type design, precision machining, simply remove the bolts when the user maintenance, open housing, can be seen bearing, ease of maintenance.
Independent production, full steel material bell housing, gears made of 40Cr steel, stable performance.
high quality finished No.45 steel tempering.
15 ton Coal Briquettes Production Plant in Congo
In March, 2016, our coal briquettes production plant was exported to Congo. This briquette plant includes coal briquette machine, crusher, double shaft mixer and binder mixer.
One set rotary dryer shipped to Vietnam
Rotary dryer is mainly applied to drying river sand, dry-mixed mortar, yellow sand, cement clinker, clay, coal gangue, mixtures, coal ash, gypsum, iron powder and other raw materials, widely used in building materials, chemical industry, casting industry and other industries.
One set coal briquette machine shiped to Lagos
Coal briquette machine can press coal powder, coke powder, coal gangue, and fly ash into ball shape. It not only reduces energy consumption, but also promotes the sustainable development strategy.
The production field in Indonesia north
Coal is the applicable and energy,so if waste the coal,it will be wasteful.So some people think that we can press coal into briquettes to storage for storage,thus coal is made full use and save energy,improve efficiency.Atthe same time,we need one machine to press coal into balls.Henan Kefan is the professional coal briquette machine supplier in China,we can supply other briquette makers,such as charcoal powder briquetting machine,etc.We can supply best products and best service,and customers who have brought our products all over the world give our products high praise.
