Energy Saving Briquette Machine
1-30 million tons of production
mining materials, metallurgical materials,coal industry,metallurgy industry, chemical and fertilizer industry, refractory industry
energy saving briquette machine press the lignite, coal, iron concentrate, aluminum powder, coke, iron oxide, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, other mineral powder, widely used in r
We're here to help: Easy ways to get the answers you need.
Energy sving briquette machine also be named energy conservation briquette machine, which is mainly used to press the lignite, coal, iron concentrate, aluminum powder, coke, iron oxide, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, other ore powder, widely used in refractories, metallurgy, chemical industry, power plants, energy, transportation, heating and other industries, the briquettes be pressed by hydraulic briquette machine is energy saving and environmental protection, convenient transportation, improve the utilization rate of waste, with advantages of continuous production, high automation, good economic and social benefits.
What is the difference between energy saving briquette machine with ordinary briquette machine?
The energy saving briquette machine is more power-saving, the width of roller is larger than one of ordinary briquette machine, get to high capacity.
Zhongzhou company offers customer a proper proposal of energy saving briquettes machine production line The complete of energy saving briquette machine production line include hopper---crusher---feeder---mixer---briquette machine, and vertical dryer, here we sincerely state the process as follows:

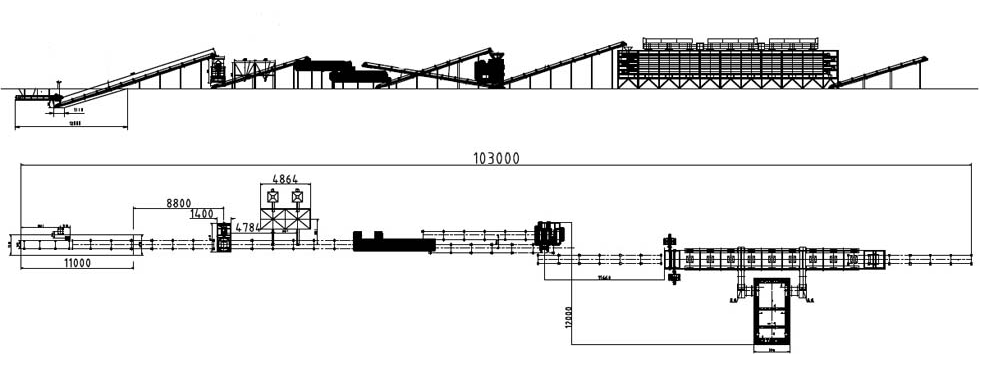

Statement of the Complete Output 2-50 T/H Briquettes Production Line
1. Rotary Dryer
Rotary dryer is widely used to dry humidity granularity materials in the industries of mineral dressing, building material, metallurgy and chemical, coal mine, etc. Wide supply scope and simple operation are the main features of it, materials should be dried to 3-10% water content that meet the demands of briquetting.
2. Two Stage Crusher:
Two stage crusher is designed and optimized in accordance with international latest crushing technology. It can crush all kinds of hard ore/metallurgy materials such as limestone, clinker, coal,coke,manganese, silica, iron ore, zinc oxide etc minerals in the metallurgy, mining, chemical industry. Its humidity of raw materials can be reach to 40%,the feeding size reach to 400mm, after crushing, the particle not more than 3mm to meet briquetting.
3. Hopper silo:
This is an automatic proportioning feeder which is used together with next mixer. It can automatically perform feed proportioning procedure according to the proportion setup pf customers so that improve working efficiency. That is composed of feeding unit, proportioning unit, electronic control system, etc.
4. Horizontal Two-shaft Mixer:
The horizontal two- shaft mixer mix materials continuously and uniformly. During the mixing, to add water and binder (liquid binder or powderd binder is considered by user's formula),controlling moisture in 8-15%,then the blended materials continuously go into briquette machine for briquetting by belt conveyor,
5. Energy saving Briquette Machine:
Zhongzhou energy saving briquette machine is a new patented type of briquetting machine, easy to operate, high pressure, work stably, energy conservantion, environmental friendly, easy for user to remove and install, mould can be produced in accordance with customer's requirements, the final briquettes has high hardness, high density, espcially the thermal intensity is high.
6. Vertical Dryer:
This is the professional equipment for drying briquettes, no matter coal briquettes, mineral briquettes,metallurgy briquettes, all can be dried by this vertical dryer, the moisture content of briquettes can be reduced to 3%, cause of briquettes came from briquette machine with 12% water content, using a drying equipment is necessary for a large scale project. Vertical dryer has the advantages of continuous production, small occupation area, low energy consumption, less parts, low failure, high yield, it is a customer preferred drying equipment.
7. Belt Conveyor:
This belt conveyor transfers material into every equipment, make the whole production line work continuously and automatically. It works under the temperature situation ranging from -20℃ to +40℃, the transferred material should be lower than 50℃.
8. Electric control cabinet
Its main role is for the all motors' start and stop control in the whole production line, under the special requirement it's also able to control the position of the motor and the speed, fault detection and fault diagnosis can be carried out when the motor is in fault, which is very convenient and quick.
Different materials will be designed into different production solution, customer at the time of consultation need inform us of the materials' moisture, particle size, yield, briquettes size, shape, some special circumstances maybe need auxiliary equipment such as other types of crusher,other types of mixer,screen mesh, vibration sieve, binder feeder, liquid mixing tank, magnetic separator, electronic belt weigher, variable-frequency drive.
If you want to get more information about our energy saving briquette machine, just consult with us by e-mail or chat with us online E-mail: zzbriquette email@example.com, +86-371-64597766 , +86-13783550028
|Power||7.5 kW||11 kW||18.5kW||22kW||37kW||55kW||90 kW||110kW|
|wear-resistant alloy||wear-resistant alloy||wear-resistant alloy||wear-resistant alloy|
|Roller assemble||Split-clamp type||Temper assembly||Temper assembly|
|Hardness of roller||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC|
|Pressure structure||Four-rollers double pressure||Four-rollers double pressure||Four-rollers double pressure|
Four rollers double pressure
after the first pressurization, the materials between main and auxiliary rollers enter the place between two main rollers for a second pressurization, where the pressure will be twice of the type of two rollers.(the auxiliary roller pre-press the hemisphere on the amin roller to exhaust air, the hemisphere will be pressed again into briquettes fomation through two main rollers).
GB standard hydraulic components
manufaturing by Dezhou oil pump company, using embolism type pump equipped with storage device which can be operation of protection briquette machine when the hydraulic moment fluctuation, the oil cylinder adopts compound type and be made of standard material 27SiMn, extremely good finish, wear resistance, having protective effect on seals.
Roller taper assembly techology(patent)
Roller and wheel hub of briquette machine is processed into tamper structure, which shall be compacted firmly by bolts for stability and reliance, easy to replace roller,save time and efforts for users.
9Cr2 forging rollers
the roller materials adpot 9Cr2 forging steel, high precision and abrasion resisitant, the rigidity reach to 55-60HR through prempering.
National standard bearing
Using the rolling mill bearing series, each model is the double row cylindrical ball bearing, well-known brands, lagre load bearing, stable performance, guarantee period of 5 years.
Split plummer block
Unique split type design, precision machining, simply remove the bolts when the user maintenance, open housing, can be seen bearing, ease of maintenance.
Independent production, full steel material bell housing, gears made of 40Cr steel, stable performance.
high quality finished No.45 steel tempering.
15 ton Coal Briquettes Production Plant in Congo
In March, 2016, our coal briquettes production plant was exported to Congo. This briquette plant includes coal briquette machine, crusher, double shaft mixer and binder mixer.
One set rotary dryer shipped to Vietnam
Rotary dryer is mainly applied to drying river sand, dry-mixed mortar, yellow sand, cement clinker, clay, coal gangue, mixtures, coal ash, gypsum, iron powder and other raw materials, widely used in building materials, chemical industry, casting industry and other industries.
One set coal briquette machine shiped to Lagos
Coal briquette machine can press coal powder, coke powder, coal gangue, and fly ash into ball shape. It not only reduces energy consumption, but also promotes the sustainable development strategy.
The production field in Indonesia north
Coal is the applicable and energy,so if waste the coal,it will be wasteful.So some people think that we can press coal into briquettes to storage for storage,thus coal is made full use and save energy,improve efficiency.Atthe same time,we need one machine to press coal into balls.Henan Kefan is the professional coal briquette machine supplier in China,we can supply other briquette makers,such as charcoal powder briquetting machine,etc.We can supply best products and best service,and customers who have brought our products all over the world give our products high praise.
