Fluorite Briquette Machine
1-30 million tons of production
metallurgical industry, steel mill, refractory industry
The fluorite briquette machine we produced has the high pressure, high finished product rate, high strength, fully meet the requirements of the operation of converter steelmaking,
We're here to help: Easy ways to get the answers you need.
Fluorite is mainly used in the metallurgical industry of iron, steelmaking and iron alloy as flux, slag agent. Due to the properties of materials, are not allowed to add any water in briquetting process, so the user needs to select the high pressure briquette machine, instead of the ordinary pressure briquette machine to complete briquetting, Zhongzhou high pressure briquette machine is a special equipment for pressing fluorite.
The characteristic of fluorite briquette machine
Good effective pressure, high briquette rate, high strength; long service life for rollers; the double shaft reducer structure, improve the precision of rollers, the involute gear reducer, improve performance and life; the prepress device use speed motor, all wear resistant parts are alloy, improve the performance and service life; the hydraulic station is placed independently with overpressure protection function.
Fluorite briquetting means can replace high grade fluorite ore, has the advantages of uniform size,The grade can be controlled easily, is widely used in various industries: 1. Metallurgy Industry: mainly as the flux, slag agent of iron, steel and iron alloy, fluorite briquettes can lower the melting point of refractory material, promote the slag flow, make the slag and metal separate well, desulfurization, dephosphorization in the smelting process, reinforced metal can be calcined and tensile strength, the general amount of mass fraction is 3% ~ 10%. 2, the cement industry: in the production of cement, fluorite as a mineralized agent . Fluorite can reduce the sintering temperature of the burden, reduce fuel consumption, but also enhance the viscosity of liquid phase sintering clinker, promote the formation of three calcium silicate.
Please inform the production requirements, the size of briquettes into its shape, the parameter table is based on the capacity of our company's standard briquettes size, calculated as the density of lime into the briquettes.
Zhengzhou Zhongzhou Briquette Machinery Plant has formed a research and development, design, manufacture, test and service of professional equipment manufacturers in China briquette machine industry, and equipped with the perfect test room of briquette machine , our factory can determine the process process and process parameters, and complete the model selection and design and manufacture based on users' material through experiment, that is the most complete and specific briquette machine manufacturing base. Welcome to visit our factory!
|Diameter of roll||530mm||650mm||750mm||850mm|
|Width of roll||196mm||196mm||196mm||250mm|
|Max linear pressure ratio||5 t/cm||6 t/cm||6t/cm||8 t/cm|
|Main power||55kw||75kw||90kw||90kw 132kw|
|Pre-pressure power(speed adjustment)||18.5kw||18.8kw 22kw||22kw||22kw|
|Oil pump powder||1.5kw||1.5x2kw||1.5x2kw||1.5x2kw|
|Main rotation speed||9r/min||9r/min||9r/min||9r/min|
|Size of briquettes||38x25x13mm||38x25x13mm||38x25x13mm||38x25x13mm|
|Output||3t/h||5t/h 8t/n||8t/h 12t/h||9t/h 15t/h|

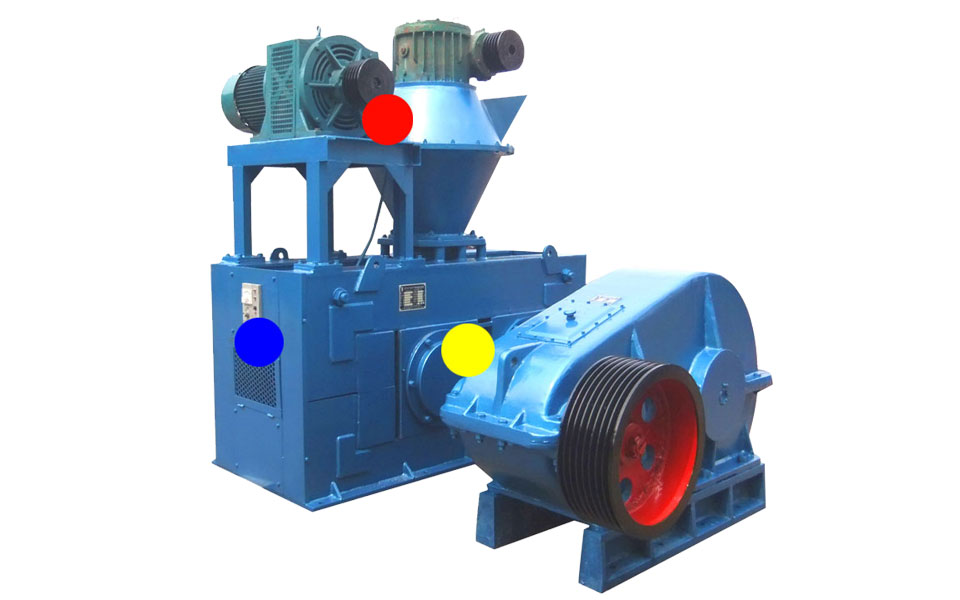

Four rollers double pressure
after the first pressurization, the materials between main and auxiliary rollers enter the place between two main rollers for a second pressurization, where the pressure will be twice of the type of two rollers.(the auxiliary roller pre-press the hemisphere on the amin roller to exhaust air, the hemisphere will be pressed again into briquettes fomation through two main rollers).
GB standard hydraulic components
manufaturing by Dezhou oil pump company, using embolism type pump equipped with storage device which can be operation of protection briquette machine when the hydraulic moment fluctuation, the oil cylinder adopts compound type and be made of standard material 27SiMn, extremely good finish, wear resistance, having protective effect on seals.
Roller taper assembly techology(patent)
Roller and wheel hub of briquette machine is processed into tamper structure, which shall be compacted firmly by bolts for stability and reliance, easy to replace roller,save time and efforts for users.
9Cr2 forging rollers
the roller materials adpot 9Cr2 forging steel, high precision and abrasion resisitant, the rigidity reach to 55-60HR through prempering.

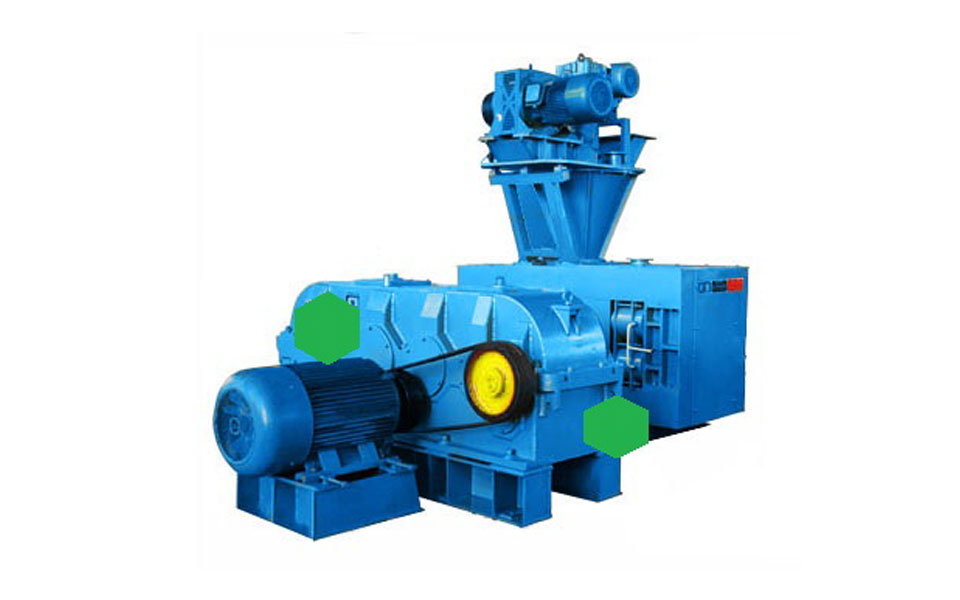

National standard bearing
Using the rolling mill bearing series, each model is the double row cylindrical ball bearing, well-known brands, lagre load bearing, stable performance, guarantee period of 5 years.
Split plummer block
Unique split type design, precision machining, simply remove the bolts when the user maintenance, open housing, can be seen bearing, ease of maintenance.
Independent production, full steel material bell housing, gears made of 40Cr steel, stable performance.
high quality finished No.45 steel tempering.
