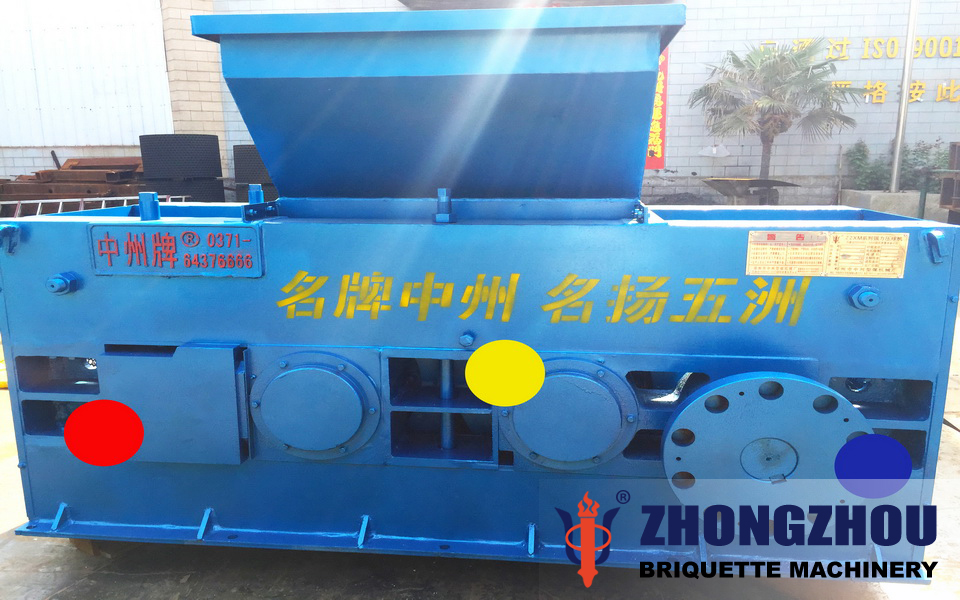

Nickel Ore Briquette Machine

  • Production capacity:

    1-30 million tons of production

  • Application:

    mining materials, metallurgical materials,coal industry,metallurgy industry, chemical and fertilizer industry, refractory industry

  • Brief description:

    the laterite nickel pressed into the briquettes as raw materials of blast furnace ironmaking can reduce cost , improve economic benefits ,expand iron ore sources, Zhongzhou laterite nickel ore briquette machine can efficiently make laterite nickel ore int

We're here to help: Easy ways to get the answers you need.

  • Description
  • Parameter
  • Advantages
  • Cases

Laterite nickel ore contain nickel, chromium and iron,laterite nickelas a new iron ore resources of iron use in steel production process, it will bring significant economic benefits.

The blast furnace requires a certain proportion of laterite nickel, the laterite nickel pressed into the briquettes as raw materials of blast furnace ironmaking can reduce cost , improve economic benefits ,expand iron ore sources, Zhongzhou laterite nickel ore briquette machine can efficiently make laterite nickel ore into briquettes,the machine has the advantages of high yield, high briquettes rate of laterite nickel, its characteristics that roller can be repalced easily. We have completed the briquetting of laterite nickel for many domestic customers with satisfactory results.

The flow chart of nickel ore briquettes production line:
1, Hopper silo, load material and convey uniform quantitative materials into the horizontal two-shafts mixer.
2. Vertical crusher, the raw material be crushed in to the appropriate size, generally it is most suitable that not more than 5mm.
3, Liquid mixer,also named blender, it is used for mixing liquefied adhesive (if you use powdered adhesives, you can choose a drying powder feeder.)
4, The horizontal two-shaft mixer, fully mixing raw materials, adhesives and water. The adhesives should be uniformly distributed among raw materials, so that achieve better thermal strength, briquettes is hard and better.
5, Nickel ore briquette machine is a core of whole production line, it press materials into briquettes, the briquettes' size and shape can be customized, zhongzhou can produce various shapes of rollers.
6, Vertical dryer, drying the wet briquettes which came from briquette machine,the briquettes can be dried to 3% water content, finished briquettes will put in storage or packaged.
7, Belt conveyor, connected to devices, it is guanrantee for the whole manganese ore briquettes production line to realizes full automation.

The requirement for raw materials of nickel ore briquette machine production:
1, the particle size of the raw material should be between 0-5mm.
2, can not contain impurities, especially large metal. Such as nails, or iron, rocks, it very likely damage roller and spindle..
3, the feeding of whole produciton line should be stable, even, ensure workloads of briquette machine stable, to get high efficiency of production.

Zhongzhou company focus on technical servces of nickel briquette machine, to create maximum value for clients, The nickel briquette machine we produced has the high pressure, high finished product rate, high strength, fully meet the requirements of the operation of iron making, cost reduction for the production of smelting,optimized operation,shorten smelting practice term, speed up the rhythm of iron making, create the conditions for the realization of maximum benefit, we sincerely welcome all steel iron enterprises to explore, mutual benefit and win-win!

Model  Performance ZZXM-4 ZZXM-6 ZZXM-8 ZZXM-10 ZZXM-15 ZZXM-20 ZZXM-30 ZZXM-40
Output 3-4t/h 6t/h 8t/h 10t/h 15t/h 20t/h 30t/h 40t/h
Roller width 250mm 240mm 220mm 300mm 336mm/400mm 428mm/500mm 500mm 700mm
Roller diameter 360mm 400mm 450mm 500mm 650mm 750mm 850mm 1000mm
Power 7.5 kW 11 kW 18.5kW 22kW 37kW 55kW 90 kW 110kW
Reducer ZQ350 ZQ400 ZQ500 ZQ500 ZQ650 ZQ850 ZQ1000 ZQ1000
Pressure type Mechincal Mechincal Mechincal Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Roller material 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn
9Cr2 9Cr2 9Cr2 9Cr2 9Cr2 9Cr2 9Cr2 9Cr2
wear-resistant alloy wear-resistant alloy wear-resistant alloy wear-resistant alloy
Roller assemble Split-clamp type Temper assembly Temper assembly
Hardness of roller 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC
Pressure structure Four-rollers double pressure Four-rollers double pressure Four-rollers double pressure
Dimension  (mm) 1200x1150x1835 1400x1298x2125 1700x1510x2200 2000x1960x2440 2188x1972x1670 2660x2300x1750 2965x2450x1980 3065x28850x2220
Weight(kg) 2100 2300 2750 5800 7600 9000 15500 25000

 Productive advantages
