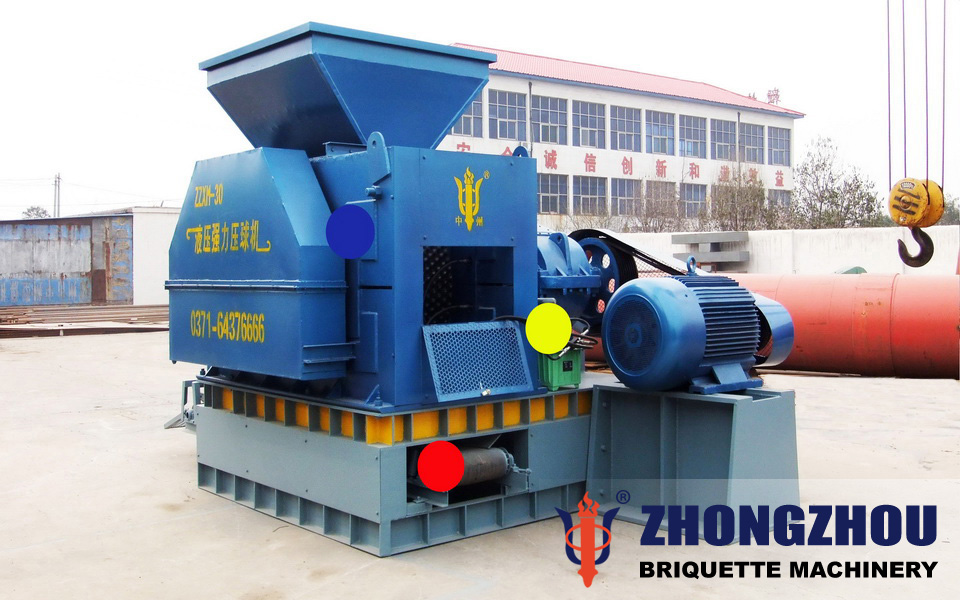

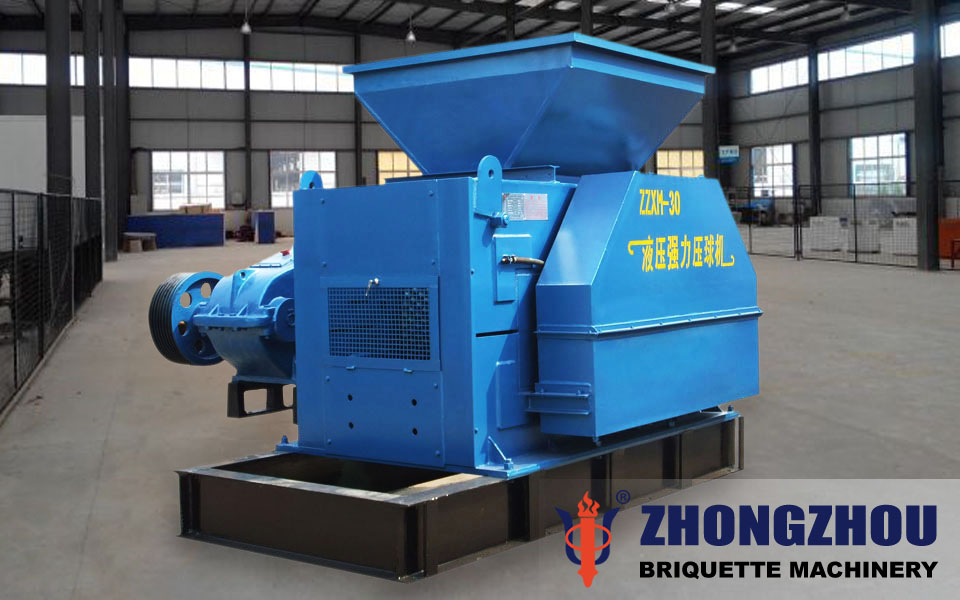

Converter Dust Briquette Machine
1-30 million tons of production
Civil coal, industrial coal, metallurgical industry, steel mill, refractory industry
Our converter dust briquette machine is technically designed and produced for briquetting various industry dust, it high productivity, high degree of automation, production efficiency,low failure rate, easy maintenance, so Zhongzhou converter dust briquet
We're here to help: Easy ways to get the answers you need.
The industrial dust were a kind of dust collected from converters, smelting plants such as steel mill, its main ingredient is iron and carbon, return to sinter it can be pressed into briquettes as raw materials then return to sintering. In general the dust of converter which using the electric dust collector contain iron content more than 50%, Primary dedusting (equipment: evaporation cooling device, role: removing dust, cooling) its dust is rough that can be as raw materials of sintering, directly sintering, The second dedusting (equipment: electrostatic dust collector, role: removing dust and cooling), itsdust is more fine, the part of them can be recycled using as sintering raw materials, making briquettes from the anther part to sintering in vertical furnace. In accordance with the ratio, pressing briquettes has little effect on the quality of mineral products.Traditional steelmaking use damp dusting system, this removing dust is precipitated into the sludge, commonly known as "red sludge", which has full hydration of calcium oxide, pressing into briquettes does not break up easily.
Our converter dust briquette machine is technically designed and produced for briquetting various industry dust, it high productivity, high degree of automation, production efficiency,low failure rate, easy maintenance, so Zhongzhou converter dust briquette machine is welcomed by many enterprises at home and abroad all the time.
1. Production technical process
Transporting converter dust to mateials bin through a dust suction car, after digesting, then go into the mixing machine and blend with binder then press into briquettes by a hydraulic briquette machine, the briquttes can be dried by our vertical dryer or using your industrial exhaust, finally sieve them to get qualified product. After many years of practical experience, has successively carried on the transformation to hopper, crusher, mixer, briquette machine, at present our proposal of dust briquetting project can basically achieve 100% production of dust briquettes.
2. The main compsed equipment for converter dust briquettes production:
1) Hopper silo, uniform quantitative material to the horizontal two-shafts mixer.
2) Blender,also named liquid mixer, it is used for liquefied adhesive (if you use powdered adhesives, you can choose the dry powder feeder.)
3) The horizontal two-shaft mixer, full mixing raw materials, adhesives, water. The adhesives should uniform distribution among raw materials in order to achieve better thermal strength, briquettes is hard and better.
4) Converter dust briquette machine is the core of whole production line, it press mixing materials into briquettes, the briquettes' size and shape can be customized, zhongzhou can produce various shapes of rollers.
5) Vertical dryer, drying the wet briquettes from briquette machine,the briquettes can be drying to 3% water content, finished briquettes will put in storage or packaged.
6) Belt conveyor, connected to devices, it is guanrantee for the whole blast furnace sludge briquettes production line to realizes full automation.
3. The requirements for raw materials of blast furnace sludge briquettes production:
1) The particle size of the raw material should be between 0-5mm.
2) Can not contain impurities, especially large metal. Such as nails, or iron, rocks, it very likely damage roller and spindle..
3) The feeding of whole produciton line should be stable, even, ensure workloads of briquette machine stable, to get high efficiency of production.
Zhongzhou company based on metallurgical briquette pressure equipment technical services, to create maximum value for clients, The converter dust briquette machine produced has the high pressure, high finished product rate, high strength, fully meet the requirements of the operation of converter steelmaking, cost reduction for the production practice of converter smelting, optimized operation,shorten the smelting practice, Speed up the rhythm of steel making, create the conditions for the realization of maximum benefit, we sincerely welcome all steel enterprises to explore, mutual benefit and win-win.
|Power||7.5 kW||11 kW||18.5kW||22kW||37kW||55kW||90 kW||110kW|
|wear-resistant alloy||wear-resistant alloy||wear-resistant alloy||wear-resistant alloy|
|Roller assemble||Split-clamp type||Temper assembly||Temper assembly|
|Hardness of roller||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC|
|Pressure structure||Four-rollers double pressure||Four-rollers double pressure||Four-rollers double pressure|
Four rollers double pressure
after the first pressurization, the materials between main and auxiliary rollers enter the place between two main rollers for a second pressurization, where the pressure will be twice of the type of two rollers.(the auxiliary roller pre-press the hemisphere on the amin roller to exhaust air, the hemisphere will be pressed again into briquettes fomation through two main rollers).
GB standard hydraulic components
manufaturing by Dezhou oil pump company, using embolism type pump equipped with storage device which can be operation of protection briquette machine when the hydraulic moment fluctuation, the oil cylinder adopts compound type and be made of standard material 27SiMn, extremely good finish, wear resistance, having protective effect on seals.
Roller taper assembly techology(patent)
Roller and wheel hub of briquette machine is processed into tamper structure, which shall be compacted firmly by bolts for stability and reliance, easy to replace roller,save time and efforts for users.
9Cr2 forging rollers
the roller materials adpot 9Cr2 forging steel, high precision and abrasion resisitant, the rigidity reach to 55-60HR through prempering.
National standard bearing
Using the rolling mill bearing series, each model is the double row cylindrical ball bearing, well-known brands, lagre load bearing, stable performance, guarantee period of 5 years.
Split plummer block
Unique split type design, precision machining, simply remove the bolts when the user maintenance, open housing, can be seen bearing, ease of maintenance.
Independent production, full steel material bell housing, gears made of 40Cr steel, stable performance.
high quality finished No.45 steel tempering.
15 ton Coal Briquettes Production Plant in Congo
In March, 2016, our coal briquettes production plant was exported to Congo. This briquette plant includes coal briquette machine, crusher, double shaft mixer and binder mixer.
One set rotary dryer shipped to Vietnam
Rotary dryer is mainly applied to drying river sand, dry-mixed mortar, yellow sand, cement clinker, clay, coal gangue, mixtures, coal ash, gypsum, iron powder and other raw materials, widely used in building materials, chemical industry, casting industry and other industries.
One set coal briquette machine shiped to Lagos
Coal briquette machine can press coal powder, coke powder, coal gangue, and fly ash into ball shape. It not only reduces energy consumption, but also promotes the sustainable development strategy.
The production field in Indonesia north
Coal is the applicable and energy,so if waste the coal,it will be wasteful.So some people think that we can press coal into briquettes to storage for storage,thus coal is made full use and save energy,improve efficiency.Atthe same time,we need one machine to press coal into balls.Henan Kefan is the professional coal briquette machine supplier in China,we can supply other briquette makers,such as charcoal powder briquetting machine,etc.We can supply best products and best service,and customers who have brought our products all over the world give our products high praise.
