mineral powder briquette machine

  • Production capacity:

    1-30 million tons of production

  • Application:

    mining materials, metallurgical materials,coal industry,metallurgy industry, chemical and fertilizer industry, refractory industry

  • Brief description:

    mineral powder briquette machine is mainly used to press the lignite, coal, iron concentrate, aluminum powder, coke, iron oxide, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, other mineral powder, widely used in r

We're here to help: Easy ways to get the answers you need.

  • Description
  • Parameter
  • Advantages
  • Cases

Zhongzhou mineral powder briquette machine/briquetting machine is mainly used to press the lignite, coal, iron concentrate, aluminum powder, coke, iron oxide, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, other mineral powder, widely used in refractories, metallurgy, chemical industry, power plants, energy, transportation, heating and other industries, the briquettes pressed by ZHONGZHOU mineral powder briquette machine/briqueting machine is energy saving and environmental protection, convenient transportation, improve the utilization rate of waste, with good economic and social benefits.

There are two type of mineral powder briquette machine/briquetting machine in Zhongzhou company, one is standard briquette machine, antoher one type is high pressure briquette machine/briquetting machine, customer should choose one of them depend on raw materials, some raw mterials such as coal, lignite, iron scales, coke allow to be added some binder and water in briquetting process, it better choose standard briquette machine to complete briquettes production, but some mateirals such as quicklime, magnesium, fluorite powder,aluminium powder not allow to add any water in process, it have to choose the high pressure briquette machine/briquetting machine to complete briquettes production, so before inquiry, customer should tell us your raw materials is, and if it allow to add water in process, Zhongzhou company will offer you a proper proposal.

The complete of standard mineral briquette machine/briquetting machine production line include hopper---crusher---feeder---mixer---briquette machine, and vertical dryer, here we sincerely state the process of standard mineral briquette machine prodction line as follows:
1. Rotary Dryer
Rotary dryer is widely used to dry humidity granularity materials in the industries of mineral dressing, building material, metallurgy and chemical, coal mine, etc. Wide supply scope and simple operation are the main features of it, materials should be dried to 3-10% water content that meet the demands of briquetting.
2. Two Stage Crusher:
Two stage crusher is designed and optimized in accordance with international latest crushing technology. It can crush all kinds of hard ore/metallurgy materials such as limestone, clinker, coal,coke,manganese, silica, iron ore, zinc oxide etc minerals in the metallurgy, mining, chemical industry. Its humidity of raw materials can be reach to 40%,the feeding size reach to 400mm, after crushing, the particle not more than 3mm to meet briquetting.
3. Hopper silo:
This is an automatic proportioning feeder which is used together with next mixer. It can automatically perform feed proportioning procedure according to the proportion setup pf customers so that improve working efficiency. That is composed of feeding unit, proportioning unit, electronic control system, etc.
4. Horizontal Two-shaft Mixer:
The horizontal two- shaft mixer mix materials continuously and uniformly. During the mixing, to add water and binder (liquid binder or powderd binder is considered by user's formula),controlling moisture in 8-15%,then the blended materials continuously go into briquette machine for briquetting by belt conveyor,

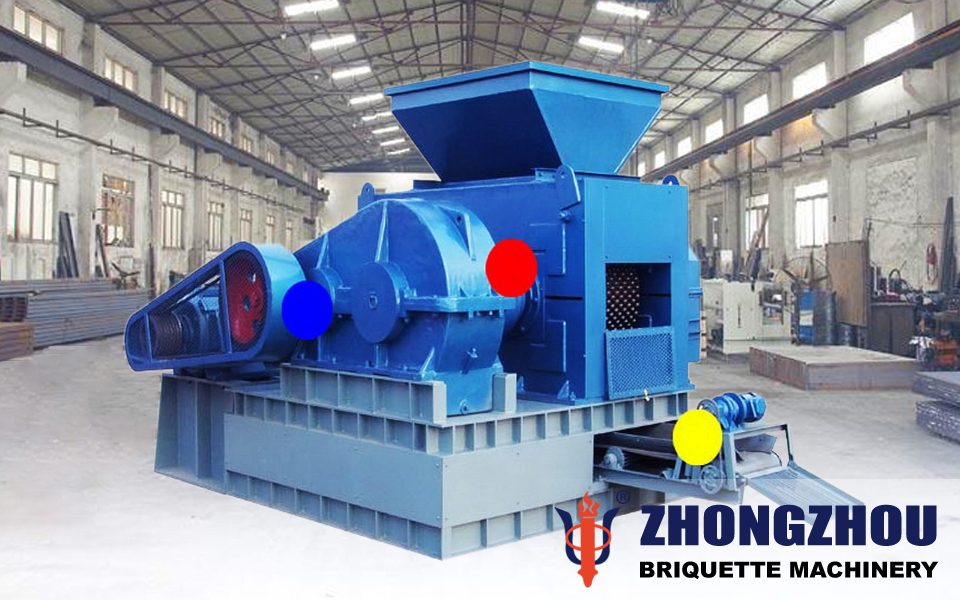

5. Mineral Briquette Machine/briquetting machine:
Zhongzhou mineral briquette machine/briquetting machine is a new patented type of mineral briquetting machine, easy to operate, high pressure, work stably, energy conservantion, environmental friendly, easy for user to remove and install, mould can be produced in accordance with customer's requirements, the final briquettes has high hardness, high density, espcially the thermal intensity is high.
6. Vertical Dryer:
This is the professional equipment for drying briquettes, no matter coal briquettes,metallurgy briquettes, all can be dried by this vertical dryer, the moisture content of briquettes can be reduced to 3%, cause of briquettes came from briquette machine with 12% water content, using a drying equipment is necessary for a large scale project. Vertical dryer has the advantages of continuous production, small occupation area, low energy consumption, less parts, low failure, high yield, it is a customer preferred drying equipment.
7. Belt Conveyor:
This belt conveyor transfers material into every equipment, make the whole production line work continuously and automatically. It works under the temperature situation ranging from -20℃ to +40℃, the transferred material should be lower than 50℃.
8. Electric control cabinet
Its main role is for the all motors' start and stop control in the whole production line, under the special requirement it's also able to control the position of the motor and the speed, fault detection and fault diagnosis can be carried out when the motor is in fault, which is very convenient and quick.

Different materials require different production proposal, customer at the time of consultation need inform us of the materials' moisture, particle size, yield, briquettes size, shape, some special circumstances maybe need auxiliary equipment such as other types of crusher,other types of mixer,screen mesh, vibration sieve, binder feeder, liquid mixing tank, magnetic separator, electronic belt weigher, variable-frequency drive.

If you are interested in high pressure mineral briquette machine/briquetting machine,please kindly consult with us ZHONGZHOU Machinery  by e-mail or online zzbriquettemachine@dzzzg.cn, +86-371-64597766 , +86-13783550028
Model  Performance ZZXM-4 ZZXM-6 ZZXM-8 ZZXM-10 ZZXM-15 ZZXM-20 ZZXM-30 ZZXM-40
Output 3-4t/h 6t/h 8t/h 10t/h 15t/h 20t/h 30t/h 40t/h
Roller width 250mm 240mm 220mm 300mm 336mm/400mm 428mm/500mm 500mm 700mm
Roller diameter 360mm 400mm 450mm 500mm 650mm 750mm 850mm 1000mm
Power 7.5 kW 11 kW 18.5kW 22kW 37kW 55kW 90 kW 110kW
Reducer ZQ350 ZQ400 ZQ500 ZQ500 ZQ650 ZQ850 ZQ1000 ZQ1000
Pressure type Mechincal Mechincal Mechincal Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Roller material 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn
9Cr2 9Cr2 9Cr2 9Cr2 9Cr2 9Cr2 9Cr2 9Cr2
wear-resistant alloy wear-resistant alloy wear-resistant alloy wear-resistant alloy
Roller assemble Split-clamp type Temper assembly Temper assembly
Hardness of roller 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC 52-62 HRC
Pressure structure Four-rollers double pressure Four-rollers double pressure Four-rollers double pressure
Dimension  (mm) 1200x1150x1835 1400x1298x2125 1700x1510x2200 2000x1960x2440 2188x1972x1670 2660x2300x1750 2965x2450x1980 3065x28850x2220
Weight(kg) 2100 2300 2750 5800 7600 9000 15500 25000

 Productive advantages
