Direct Reduced Iron Briquette Machine
1-30 million tons of production
mining materials, metallurgical materials,coal industry,metallurgy industry, chemical and fertilizer industry, refractory industry
Direct reduction iron(DRI) also named sponge iron, It is the raw material for electric furnace steelmaking. In the direct reduced iron production process, no matter what kind of production process is, all need use briquette machine to complete briquetting
We're here to help: Easy ways to get the answers you need.
Direct reduction iron(DRI) also named sponge iron, It is the raw material for electric furnace steelmaking. In the direct reduced iron production process, no matter what kind of production process is, all need use briquette machine to complete briquetting raw materials, mixing all materials such as iron ore, iron concentrates, coke, coal and bidner together, to press them into briquettes by briquette machine, then remove moisture, the drying briquettes can be smelted in furnace.

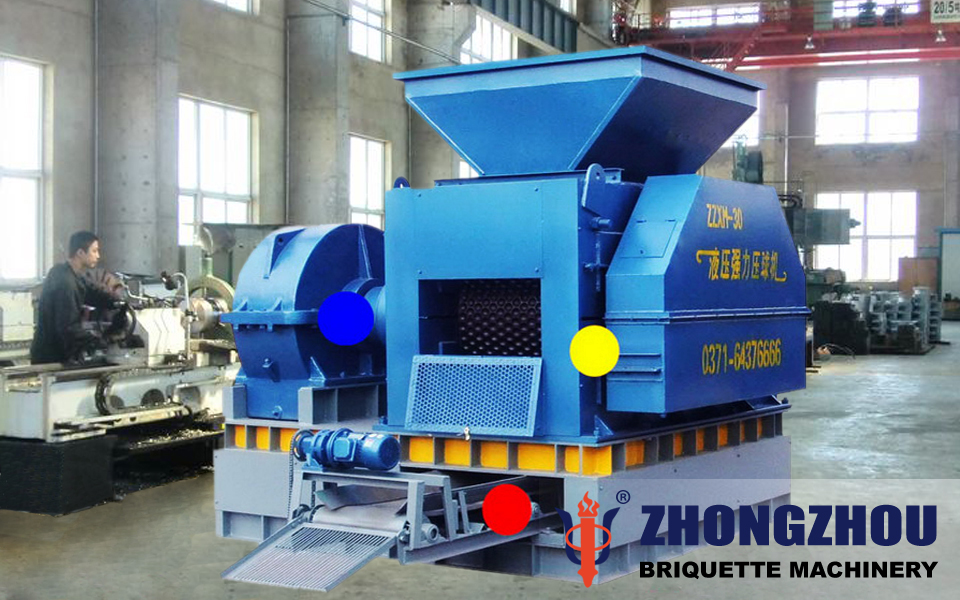

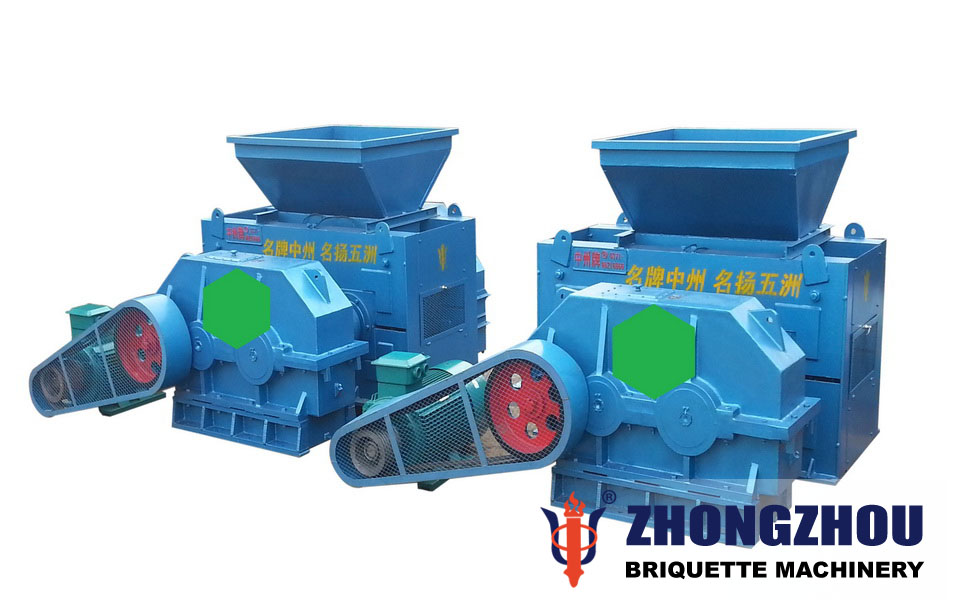

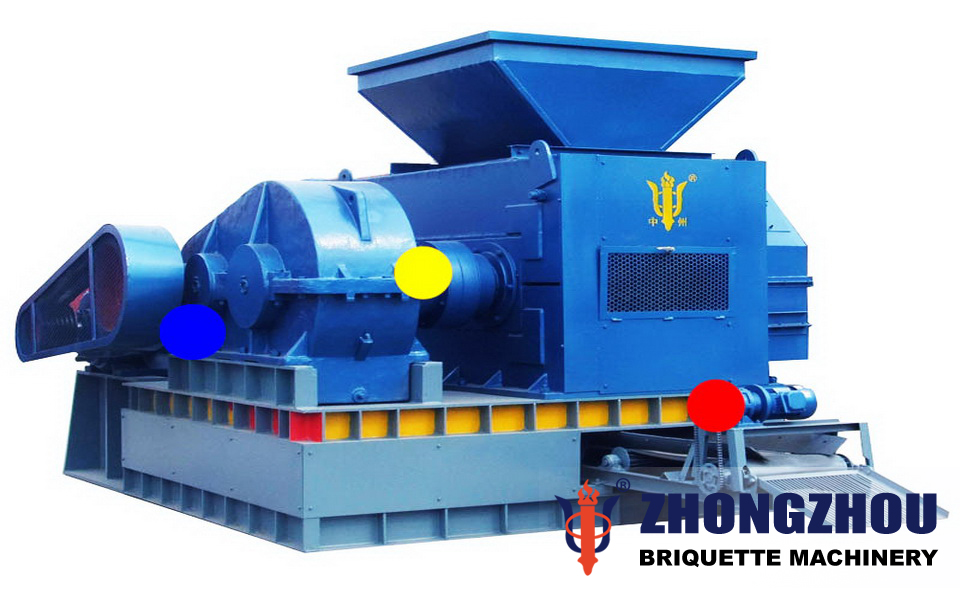

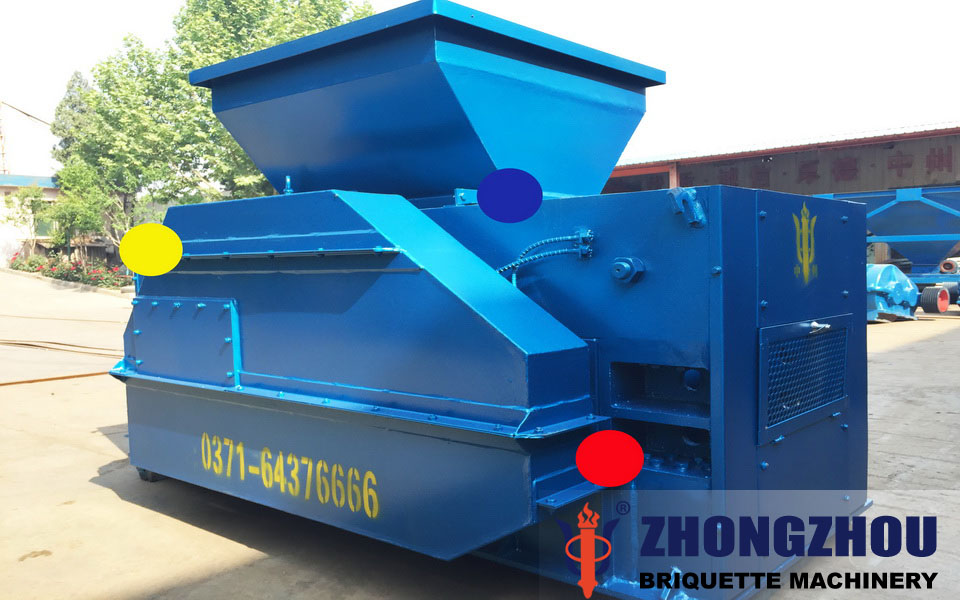

Zhongzhou briquette machine / briquetting machine is specifically designed for briquetting in DRI production process, it is high pressure, high product rate, working stably,low failure rate and easy maintenance, so Zhongzhou Direct reduction iron DRI briquette machine briquetting machine was welcomed by many enterprises at home and abroad.
Here we focus on the briquetting part in the Direct Reduced Iron production process, the DRI Briquettes production process generally include batching, grinding, mixing, briquetting and drying:
1. Hopper silo, or box type quantitative feeder, it load and convey raw materials to crusher evenly.
2. Two-stage crusher, the raw material be crushed in to the appropriate size, generally it is most suitable that not more than 5mm.
3. Liquid mixer, be used for mixing liquid binder, if use powdered binder, it should use a drying powder feeding equipment.
4.Horizontal two shafts mixer, evenly mixing raw materials, adhesives andwater together, the adhesive will be evenly distributed in the raw materials so that achieve better strength, making briquettes better.
5. carbon silicon briquette machine is a core of whole production line, it press materials into briquettes, the briquettes' size and shape can be customized, zhongzhou can produce various shapes of rollers.
6, vertical dryer, drying the wet briquettes which came from briquette machine,the briquettes can be dried to 3% water content, finished briquettes will put in storage or packaged.
7, belt conveyor, connected to devices, it is guanrantee for the whole manganese ore briquettes production line to realizes full automation.
The requirement for raw materials of direct reduced iron briquette machine:
|Power||7.5 kW||11 kW||18.5kW||22kW||37kW||55kW||90 kW||110kW|
|wear-resistant alloy||wear-resistant alloy||wear-resistant alloy||wear-resistant alloy|
|Roller assemble||Split-clamp type||Temper assembly||Temper assembly|
|Hardness of roller||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC||52-62 HRC|
|Pressure structure||Four-rollers double pressure||Four-rollers double pressure||Four-rollers double pressure|
Four rollers double pressure
after the first pressurization, the materials between main and auxiliary rollers enter the place between two main rollers for a second pressurization, where the pressure will be twice of the type of two rollers.(the auxiliary roller pre-press the hemisphere on the amin roller to exhaust air, the hemisphere will be pressed again into briquettes fomation through two main rollers).
GB standard hydraulic components
manufaturing by Dezhou oil pump company, using embolism type pump equipped with storage device which can be operation of protection briquette machine when the hydraulic moment fluctuation, the oil cylinder adopts compound type and be made of standard material 27SiMn, extremely good finish, wear resistance, having protective effect on seals.
Roller taper assembly techology(patent)
Roller and wheel hub of briquette machine is processed into tamper structure, which shall be compacted firmly by bolts for stability and reliance, easy to replace roller,save time and efforts for users.
9Cr2 forging rollers
the roller materials adpot 9Cr2 forging steel, high precision and abrasion resisitant, the rigidity reach to 55-60HR through prempering.
National standard bearing
Using the rolling mill bearing series, each model is the double row cylindrical ball bearing, well-known brands, lagre load bearing, stable performance, guarantee period of 5 years.
Split plummer block
Unique split type design, precision machining, simply remove the bolts when the user maintenance, open housing, can be seen bearing, ease of maintenance.
Independent production, full steel material bell housing, gears made of 40Cr steel, stable performance.
high quality finished No.45 steel tempering.
