Cryolite Briquette Machine
1-30 million tons of production
mining materials, metallurgical materials,coal industry,metallurgy industry, chemical and fertilizer industry, refractory industry
Cryolitebriquette machine is mainly used dry pressing typel, the whole process of pressing briquettes without any moisture and adhesive, direct forming,it has high pressure. Composition of cryolite briquette machine includes motor, reducer, belt, roller,
We're here to help: Easy ways to get the answers you need.

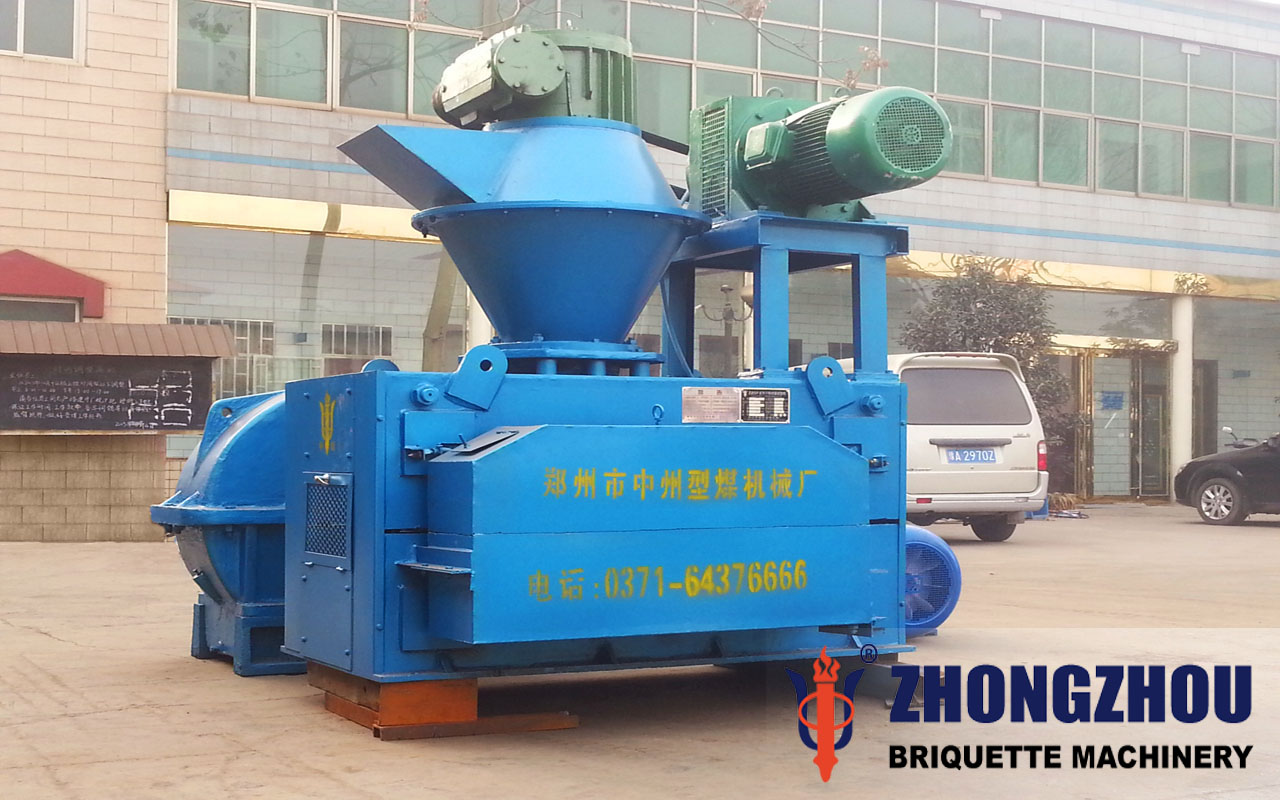

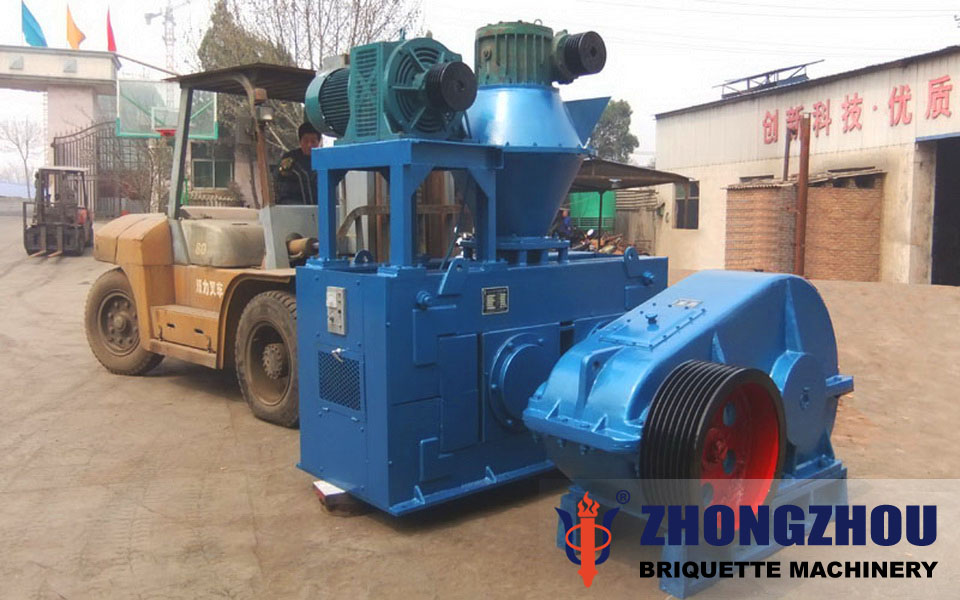

Cryolite Briquette Machine / Briquetting Machine
Cryolite is a fluxing agent in production process of electrolytic aluminium .Cryolite briquette machine is mainly used dry pressing typel, the whole process of pressing briquettes without any moisture and adhesive, direct forming,it has high pressure. Composition of cryolite briquette machine includes motor, reducer, belt, roller, gear, chassis, frame, pressure feed device, pressure device and the discharge device etc.
Cryolite briquette machine / Briquetting Machine
Zhongzhou cryolite briquette machine adpot technology of taper assembly for rollers, easy discharging rollers, saving time and save labor. Supporting equipment to provide a one-stop solution. Equipment maintenance is simple, the loss is small, the technical problems can be sloved through contacting with us at any time, we provide a full range of technical support to solve your worries in 24 hours.
Purchase guidance for cryolite briquette machine/ briquetting machine:
Please inform the production requirements, the size of briquettes into its shape, the parameter table is based on the capacity of our company's standard briquettes size, calculated as the density of lime into the briquettes.
Cryolite briquette machine / briquetting machine
Zhengzhou Zhongzhou Briquette Machinery Plant has formed a research and development, design, manufacture, test and service of professional equipment manufacturers in China briquette machine industry, and equipped with the perfect test room of briquette machine , our factory can determine the process process and process parameters, and complete the model selection and design and manufacture based on users' material through experiment, that is the most complete and specific briquette machine manufacturing base. Welcome to visit our factory!
|Diameter of roll||530mm||650mm||750mm||850mm|
|Width of roll||196mm||196mm||196mm||250mm|
|Max linear pressure ratio||5 t/cm||6 t/cm||6t/cm||8 t/cm|
|Main power||55kw||75kw||90kw||90kw 132kw|
|Pre-pressure power(speed adjustment)||18.5kw||18.8kw 22kw||22kw||22kw|
|Oil pump powder||1.5kw||1.5x2kw||1.5x2kw||1.5x2kw|
|Main rotation speed||9r/min||9r/min||9r/min||9r/min|
|Size of briquettes||38x25x13mm||38x25x13mm||38x25x13mm||38x25x13mm|
|Output||3t/h||5t/h 8t/n||8t/h 12t/h||9t/h 15t/h|
Four rollers double pressure
after the first pressurization, the materials between main and auxiliary rollers enter the place between two main rollers for a second pressurization, where the pressure will be twice of the type of two rollers.(the auxiliary roller pre-press the hemisphere on the amin roller to exhaust air, the hemisphere will be pressed again into briquettes fomation through two main rollers).
GB standard hydraulic components
manufaturing by Dezhou oil pump company, using embolism type pump equipped with storage device which can be operation of protection briquette machine when the hydraulic moment fluctuation, the oil cylinder adopts compound type and be made of standard material 27SiMn, extremely good finish, wear resistance, having protective effect on seals.
Roller taper assembly techology(patent)
Roller and wheel hub of briquette machine is processed into tamper structure, which shall be compacted firmly by bolts for stability and reliance, easy to replace roller,save time and efforts for users.
9Cr2 forging rollers
the roller materials adpot 9Cr2 forging steel, high precision and abrasion resisitant, the rigidity reach to 55-60HR through prempering.
National standard bearing
Using the rolling mill bearing series, each model is the double row cylindrical ball bearing, well-known brands, lagre load bearing, stable performance, guarantee period of 5 years.
Split plummer block
Unique split type design, precision machining, simply remove the bolts when the user maintenance, open housing, can be seen bearing, ease of maintenance.
Independent production, full steel material bell housing, gears made of 40Cr steel, stable performance.
high quality finished No.45 steel tempering.
15 ton Coal Briquettes Production Plant in Congo
In March, 2016, our coal briquettes production plant was exported to Congo. This briquette plant includes coal briquette machine, crusher, double shaft mixer and binder mixer.
One set rotary dryer shipped to Vietnam
Rotary dryer is mainly applied to drying river sand, dry-mixed mortar, yellow sand, cement clinker, clay, coal gangue, mixtures, coal ash, gypsum, iron powder and other raw materials, widely used in building materials, chemical industry, casting industry and other industries.
One set coal briquette machine shiped to Lagos
Coal briquette machine can press coal powder, coke powder, coal gangue, and fly ash into ball shape. It not only reduces energy consumption, but also promotes the sustainable development strategy.
The production field in Indonesia north
Coal is the applicable and energy,so if waste the coal,it will be wasteful.So some people think that we can press coal into briquettes to storage for storage,thus coal is made full use and save energy,improve efficiency.Atthe same time,we need one machine to press coal into balls.Henan Kefan is the professional coal briquette machine supplier in China,we can supply other briquette makers,such as charcoal powder briquetting machine,etc.We can supply best products and best service,and customers who have brought our products all over the world give our products high praise.
Inquiry*Describe your buying requirements in detail
Please enter your demand such as Raw material type, Capacity, Feeding material size, briquettes' size and shape. Any other requirements and questions about the machines, you can also contact online or leave a message, we will offer you a perfect proposal!
